Simultaneous Rayleigh/Mie and Raman/Fluorescence Characterization of Molecularly Functionalized Colloids by Correlative Single-Particle Real-Time Imaging in Suspension
Joerg Wissler, Martin Wehmeyer, Sandra Bäcker, Shirley Knauer, Sebastian Schlücker
文献索引：10.1021/acs.analchem.7b02528
全文：HTML全文
摘要

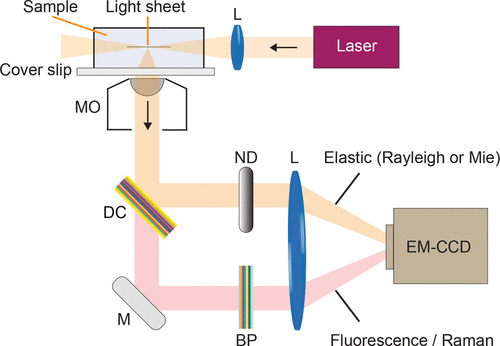

Many applications of nano- and microparticles require molecular functionalization. Assessing the heterogeneity of a colloidal sample in terms of its molecular functionalization is highly desirable but not accessible by conventional ensemble experiments. Retrieving this information necessitates single-particle experiments which simultaneously detect both functionalized and nonfunctionalized particles via two separate imaging channels. In this contribution, we present an optical setup for performing correlative single-particle imaging using laser light-sheet illumination: the first detection channel records elastic light scattering (Rayleigh/Mie), while the second channel detects inelastic light scattering (Raman) or fluorescence. The instrument is tested with Raman reporter-functionalized SERS-active metal nanoparticles (core/satellite silver nanoparticles, dimers and monomers of gold nanoparticles) and fluorophore-functionalized colloids (fluorescent polymer microparticles, dye-labeled protein on gold nanoparticles).
